| Glass Bottles >> Amber ISO/SPDA20

Amber ISO/SPDA20

 Glass Bottles Amber ISO/SPDA20

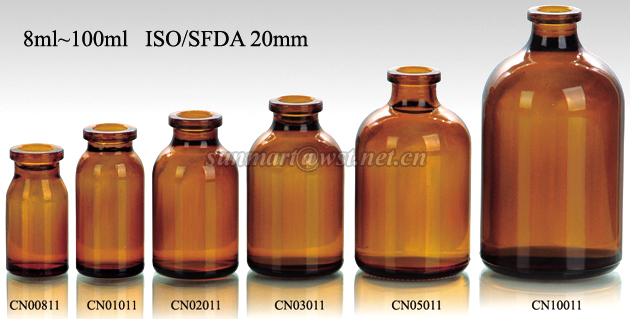

Item No. Capacity Weight (g.) Neck Measurement(mm)
Actual Brimful Dia. Height
CN00811 8ml 10ml 16 C20mm 23 46.8
CN01011 10ml 15ml 21 C20mm 25.4 53.5
CN02011 20ml 26ml 29 C20mm 32 58
CN03011 30ml 38ml 35 C20mm 36 62.8
CN05011 50ml 60ml 50 C20mm 42.5 73
CN10011 100ml 119ml 89 C20mm 51.6 94.5
Neck: ISO/SFDA 20mm
Glass Bottles Amber ISO/SPDA20

Glass Bottles Amber ISO/SPDA20

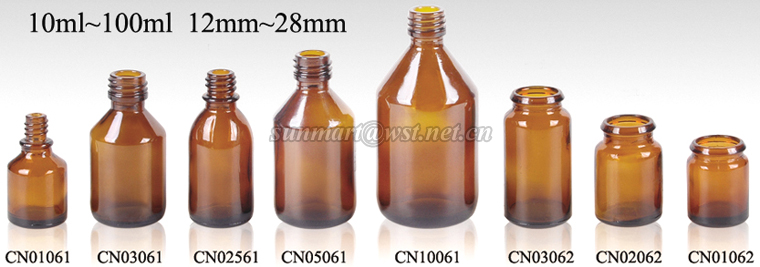

Item No. Capacity Weight (g.) Neck Measurement(mm)
Actual Brimful Dia. Height
CN01062 10ml 14ml 22.5 C28mm 30 40
CN01061 10ml 14.5ml 26.5 12mm 30 54
CN02062 20ml 27.5ml 28.5 C28mm 34 51
CN02561 25ml 33ml 41 16mm 33 76.5
CN03061 30ml 44ml 43 20mm 38 75
CN03062 30ml 38ml 42 28mm 34 66.5
CN05061 50ml 60ml 62 20mm 42 85
CN10061 100ml 120ml 105 20mm 52 105
At a glanceAmber glass bottles on the ISO 20 mm crimp neck (C20), 8 ml to 100 ml, the neck that most nasal and throat spray pumps are crimped onto. The same page carries a C28 group and 12, 16, 20 and 28 mm screw neck bodies from 10 ml to 100 ml, so one range can cover a crimped spray and a screw-cap pack; the two are different configurations rather than parts that swap over. A 20 mm crimp neck needs a pump with a matching ferrule and an aluminium overcap, and we make all three, which removes the usual mismatch between bottle supplier and pump supplier. Send the dose per stroke and the actuator you use and the bottle, pump and cap come back as one quotation.
Quality & complianceView ISO certifications, patents and FAQs for 20 mm crimp glass bottles.
