- HDPE bottles with Plastic Overcaps

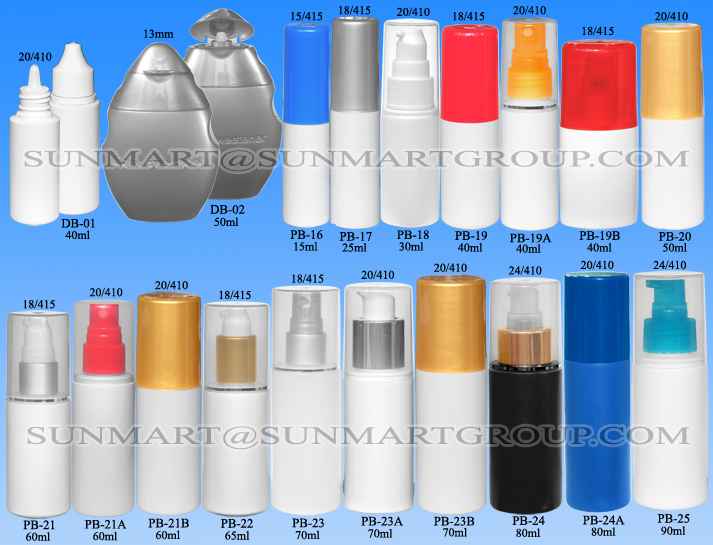

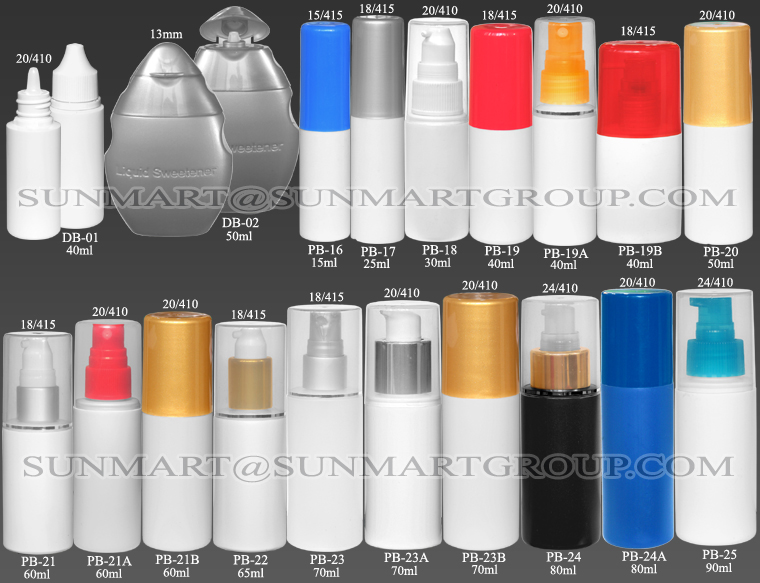

- DB-01 Drop PE bottle 40ml Neck:20/410 with PE tip + PP tamper evident cap
  dimension: dia.29.5mm X total height 92mm

- DB-02 Drop PE bottle 50ml Neck: 13mm with PE tip + PP flip top cap in snap-on
   dimension: width 52.5mm X thickness 30.2mm X total height 71.3mm
(it is private moulds,just for references only)

- PB-16 PE bottle 15ml Neck:15/415 with PP overcap
   dimension: dia.22.2mm X total height 95.6mm
- PB-17 PE bottle 25ml Neck:18/415 with PP overcap
   dimension: dia.24.5mm X total height 107mm
- PB-18 PE bottle 30ml Neck:20/410 with PP overcap
   dimension: dia.30mm X total height 104mm
- PB-19 PE bottle 40ml Neck:18/415 with PP overcap
   dimension: dia.32mm X total height 103mm
- PB-19A PE bottle 40ml Neck:20/410 with PP overcap
   dimension: dia.30mm X total height 114mm
- PB-19B PE oval bottle 40ml Neck:18/415 with PP overcap
   dimension: width 39.7mmXthickness26.4mmXtotal height 99mm
- PB-20 PE bottle 50ml Neck:20/410 with PP overcap
   dimension: dia.36mm X total height 111.5mm

- PB-21 PE bottle 60ml Neck:18/415 with PP overcap
   dimension: dia.36mm X total height 110mm
- PB-21A PE bottle 60ml Neck:20/410 with PP overcap
   dimension: dia.33.6mm X total height 116.3mm
- PB-21B PE bottle 60ml Neck:20/410 with PP overcap
   dimension: dia.36.4mm X total height 120.3mm
- PB-22 PE bottle 65ml Neck:18/415 with PP overcap
   dimension: dia.36mm X total height 116mm
- PB-23 PE bottle 70ml Neck:18/415 with PP overcap
   dimension: dia.36mm X total height 131mm
- PB-23A PE bottle 70ml Neck:20/410 with PP overcap
   dimension: dia.36mm X total height 120mm
- PB-23B PE bottle 70ml Neck:20/410 with PP overcap
   dimension: dia.36mm X total height 130.6mm
- PB-24 PE bottle 80ml Neck:24/410 with PP overcap
   dimension: dia.38.3mm X total height 129mm
- PB-24A PE bottle 80ml Neck:20/410 with PP overcap
   dimension: dia.35.6mm X total height 132mm
- PB-25 PE bottle 90ml Neck:24/410 with PP overcap
   dimension: dia.39mm X total height 130mm

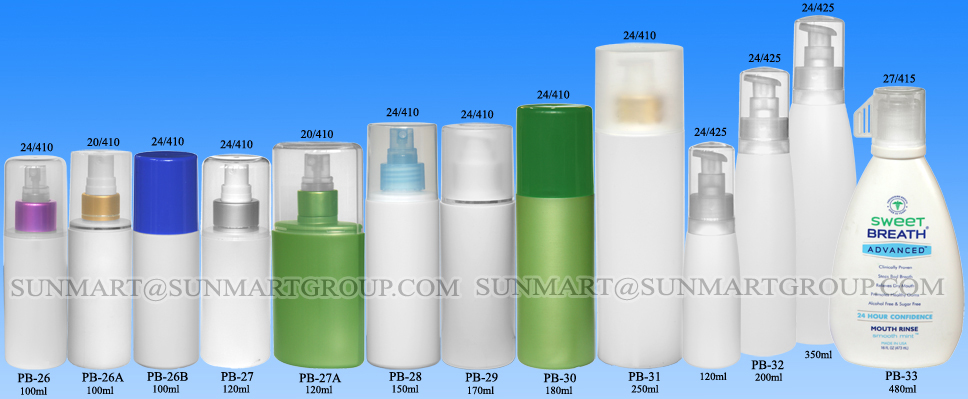

-  PB-26 PE bottle 100ml Neck:24/410 with PP overcap
   dimension: dia.43mm X total height 135mm
- PB-26A PE bottle 100ml Neck:20/410 with PP overcap
   dimension: dia.39mm X total height 143mm
- PB-26B PE bottle 100ml Neck:24/410 with PP overcap
   dimension: dia.40mm X total height 141mm
- PB-27 PE bottle 120ml Neck:24/410 with PP overcap
   dimension: dia.42.5mm X total height 135mm
- PB-27A PE oval bottle 120ml Neck:20/410 with PP overcap
   dimension: width 56mmXthickness35mmXtotal height 148mm
- PB-28 PE bottle 150ml Neck:24/410 with PP overcap
   dimension: dia.45mm X total height 160mm
- PB-29 PE bottle 170ml Neck:24/410 with PP overcap
   dimension: dia.46mm X total height 160mm
- PB-30 PE bottle 180ml Neck:24/410 with PP overcap
   dimension: dia.45.6mm X total height 177mm
- PB-31 PE bottle 250ml Neck:24/410 with PP overcap
   dimension: dia.47.6mm X total height 212mm

- PB32 PE bottles neck:24/416 with the cream pump double-wall closure dosage:0.4ml with PS overcap
    -  120ml       -  200ml      -  350ml

- PB-33 PE oval bottle for mouth rinse 480ml Neck:27/415 with PP flip top cap 27/415 ribbed+graduate 20ml
   dimension: width 97mm X thickness 53mm X total height 201mm

- PET bottles with plastic overcaps

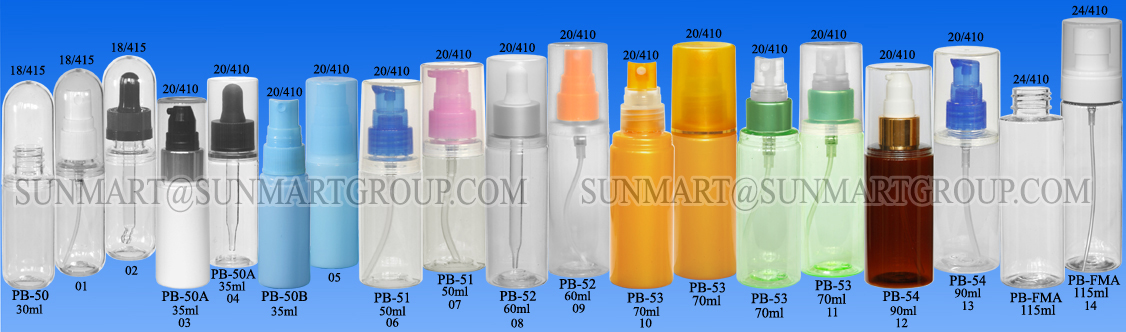

- PB-50 PET clear bottle 30ml Neck:18/410 with K-resin overcap
   dimension: dia.29.6mm X height 73.2mm(total height 105mm)

- PB-50A PET clear bottle 35ml Neck:20/410 with PP overcap
   dimension: dia.30mm X height 74mm(total height 104mm)

- PB-50B PET clear bottle 35ml Neck:20/410 with PP overcap
   dimension: dia.28mm X height 78.5mm(total height 105.5mm)

- PB-51 PET clear bottle 50ml Neck:20/410 with PP overcap
   dimension: dia.33.3mm X height 88mm(total height 116mm)

- PB-52 PET clear bottle 60ml Neck:20/410 with PP overcap
   dimension: dia.33mm X height 103mm(total height 132mm)

- PB-53 PET clear bottle 70ml Neck:20/410 with PP overcap
   dimension: dia.33.5mm X height 103mm(total height 131.5mm)

- PB-54 PET clear bottle 90ml Neck:20/410 with K-resin overcap
   dimension: dia.40.7mm X height 92mm(total height 123mm)

- PB-FMA PET clear bottle 115ml flat shoulder Neck:24/410 without caps
   dimension: dia.38.2mm X height 123mm(total height 153mm)
   - the fine mist spray pump FMA-01 24/410 double-wall closure dosage:0.12ml with PP overcap

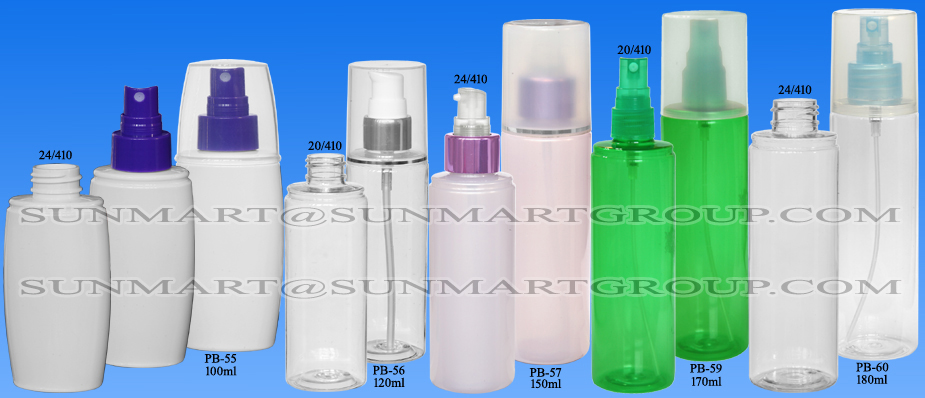

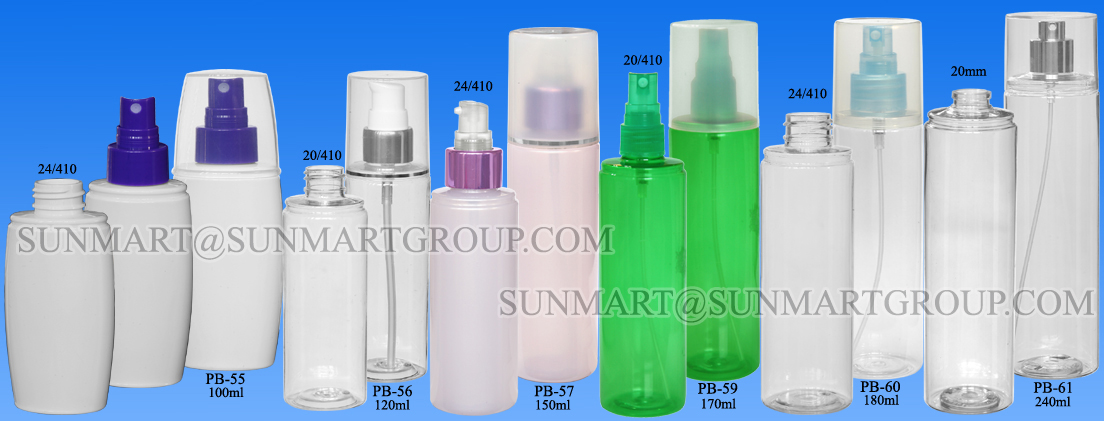

- PB-55 PET clear oval bottle 100ml Neck:24/410 with PP overcap
   dimension: width 49.6mmXthickness33.5mmXtotal height 148mm

- PB-56 PET clear bottle 120ml Neck:20/410 with PP overcap
   dimension: dia.40.3mm X height 124.5mm(total height 153mm)

- PB-57 PET clear bottle 150ml Neck:24/410 with PP overcap
   dimension: dia.45mm X height 130mm(total height 173.5mm)

- PB-59 PET clear bottle 170ml Neck:20/410 with PP overcap
   dimension: dia.44mm X height 147mm(total height 175mm)

- PB-60 PET clear bottle 180ml Neck:24/410 with PP overcap
   dimension: dia.45mm X height 147.6mm(total height 175mm)

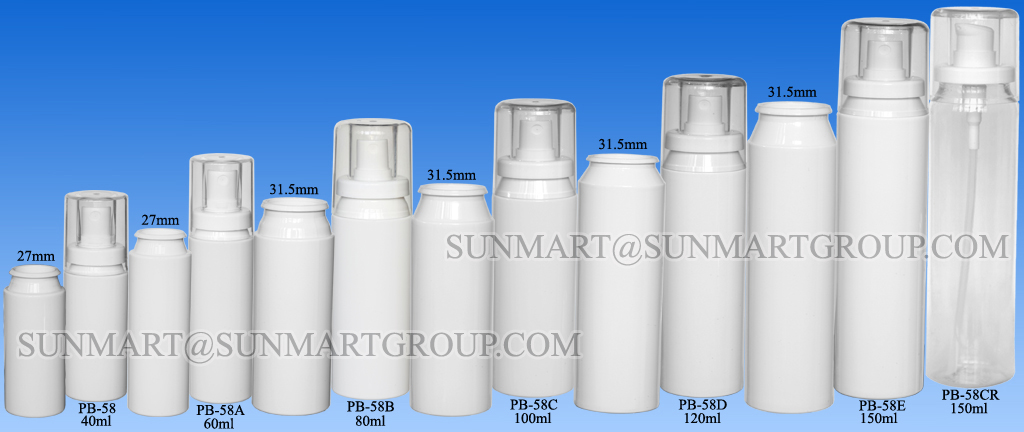

- PB-58 PET clear bottle 40ml neck: 27mm with K-resin overcap
   dimension: dia.32.5mm X height 75mm(total height 103mm)
   - the fine mist spray pump FMB-08B 27mm dosage:0.12ml in snap-on

- PB-58A PET clear bottle 60ml neck: 27mm with K-resin overcap
   dimension: dia.32.5mm X height 92mm(total height 120mm)
   - the fine mist spray pump FMB-08B 27mm dosage:0.12ml in snap-on

- PB-58B PET clear bottle 80ml neck: 31.5mm with K-resin overcap
   dimension: dia.38.5mm X height 107mm(total height 136.5mm)
   - the fine mist spray pump FMB-05A dosage:0.12ml in snap-on

- PB-58C PET clear bottle 100ml neck: 31.5mm with K-resin overcap
   dimension: dia.38.5mm X height 116mm(total height 145.5mm)
   - the fine mist spray pump FMB-05A dosage:0.12ml in snap-on

- PB-58D PET clear bottle 120ml neck: 31.5mm with K-resin overcap
   dimension: dia.38.2mm X height 132mm(total height 162mm)
   - the fine mist spray pump FMB-05A dosage:0.12ml in snap-on

- PB-58E PET clear bottle 150ml neck: 31.5mm with K-resin overcap
   dimension: dia.38.2mm X height 160mm(total height 190.5mm)
   - the fine mist spray pump FMB-05A dosage:0.12ml in snap-on

- PB-58CR PET clear bottle 150ml neck: 31.5mm with K-resin overcap
   dimension: dia.38.2mm X height 160mm(total height 190.5mm)
   - the treatment pumps FMB-05CR dosage:0.20ml in snap-on

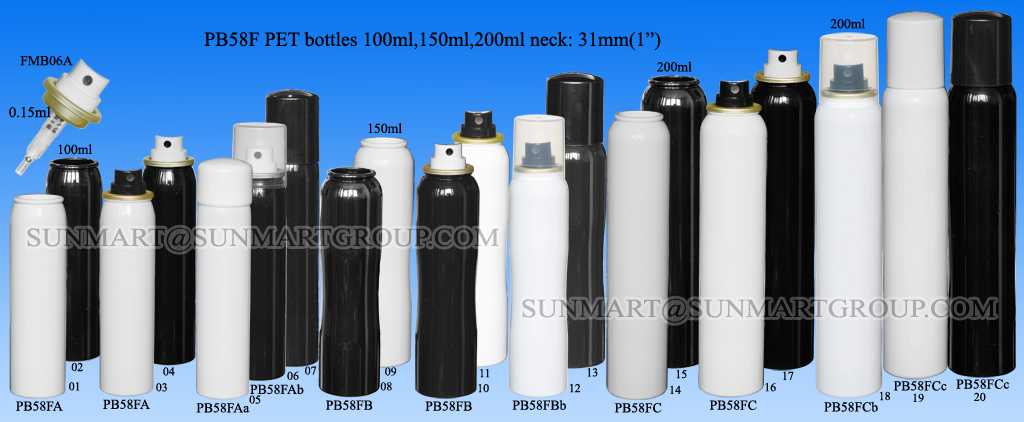

- this PB-58F series is newly developed and the PET bottles replace the regular aluminium cans neck: 1"
- the fine mist spray pump FMB06A(metal aerosol cup 1") dosage:0.15ml with non-touch spring inside the pump body,without touch liquid spray by the spring.This pump is well received by all our customers.

- PB-58FAa PET clear round bottle 100ml neck: 31mm(1") with PP short overcap"05" dia.35.5mmX28.5mm
   dimension: dia.35mm X height 135mm(total height 155mm)
   - the fine mist spray pump FMB06A(metal aerosol cup 1") dosage:0.15ml non-touch spring inside the pump body in snap-on

- PB-58FAb PET clear round bottle 100ml neck: 31mm(1") with PP flat top overcap"06" dia.34.5mmX39mm
   dimension: dia.35mm X height 135mm(total height 164mm)
   - the fine mist spray pump FMB06A(metal aerosol cup 1") dosage:0.15ml non-touch spring inside the pump body in snap-on

- PB-58FAc PET clear round bottle 100ml neck: 31mm(1") with PP dome top overcap"07" dia.34mmX43mm
   dimension: dia.35mm X height 135mm(total height 169mm)
   - the fine mist spray pump FMB06A(metal aerosol cup 1") dosage:0.15ml non-touch spring inside the pump body in snap-on

- PB-58FBb PET clear drum shaped bottle 150ml neck: 31mm(1") PP flat top overcap"12" dia.34.5mmX39mm
   dimension: dia.35mm X height 150mm(total height 184mm)
   - the fine mist spray pump FMB06A(metal aerosol cup 1") dosage:0.15ml non-touch spring inside the pump body in snap-on

- PB-58FBc PET clear drum shaped bottle 150ml neck: 31mm(1") PP dome top overcap"13" dia.34mmX43mm
   dimension: dia.35mm X height 150mm(total height 188mm)
   - the fine mist spray pump FMB06A(metal aerosol cup 1") dosage:0.15ml non-touch spring inside the pump body in snap-on

- PB-58FCb PET clear round bottle 200ml neck: 31mm(1") PP flat top overcap"18" dia.34.5mmX39mm
   dimension: dia.35mm X height 185mm(total height 218mm)
   - the fine mist spray pump FMB06A(metal aerosol cup 1") dosage:0.15ml non-touch spring inside the pump body in snap-on

- PB-58FCc PET clear round bottle 200ml neck: 31mm(1") PP dome top overcap "19/20" dia.34mmX43mm
   dimension: dia.35mm X height 185mm(total height 223mm)
   - the fine mist spray pump FMB06A(metal aerosol cup 1") dosage:0.15ml non-touch spring inside the pump body in snap-on

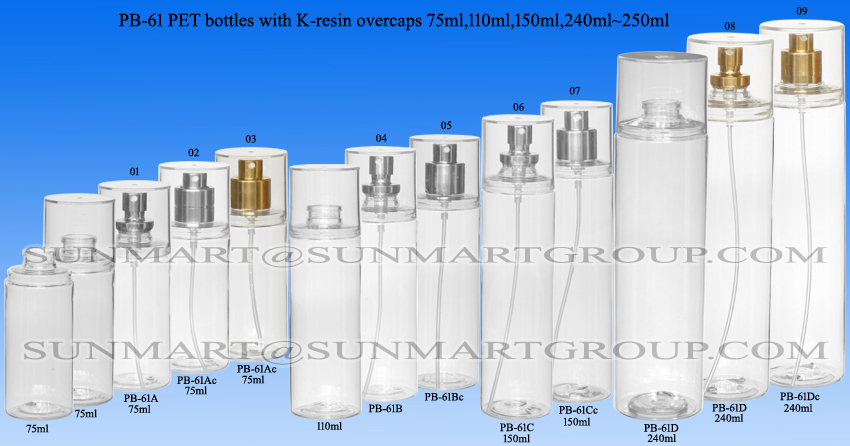

 - the neck of this PB-61 serie is 20mm in crimp-on version,to be fitted with our FMB-02(metal ferrules+metal sheathed actuators)

or FMB-03(metal ferrules+metal sheathed actuators+metal collars)

- PB-61A PET clear cylinder bottle 75ml neck: 20mm with K-resin overcap dia.39.8mmX37.5mm without pumps

   the bottle+cap's dimension: dia.40mm X height 92.6mm(total height with the cap 113.7mm)

- PB-61B PET clear cylinder bottle 110ml neck: 20mm with K-resin overcap dia.39.8mmX37.5mm without pumps

   the bottle+cap's dimension: dia.40mm X height 117mm(total height with the cap 138mm)

- PB-61C PET clear cylinder bottle 150ml neck: 20mm with K-resin overcap dia.39.8mmX37.5mm without pumps

   the bottle+cap's dimension: dia.40mm X height 142.4mm(total height with the cap 163mm)

- PB-61D PET clear cylinder bottle 240~250ml neck: 20mm with K-resin overcap dia.46.5mmX40mm without pump

   the bottle+cap's dimension: dia.47.3mm X height 169mm(total height with the cap 193mm)

- the crimp-on spray pumps to be fitted with the above bottles in PB-61 series:

- the crimp-on spray pumps FMB-02(metal ferrules+metal sheathed actuators) dia.20mm dosages:0.04ml,0.05ml,0.08ml,0.10ml,0.12ml

- the crimp-on spray pumps FMB-03(metal ferrules+metal sheathed actuators+metal collars) dia.20mm dosages:0.04ml,0.05ml,0.08ml,0.10ml,0.12ml

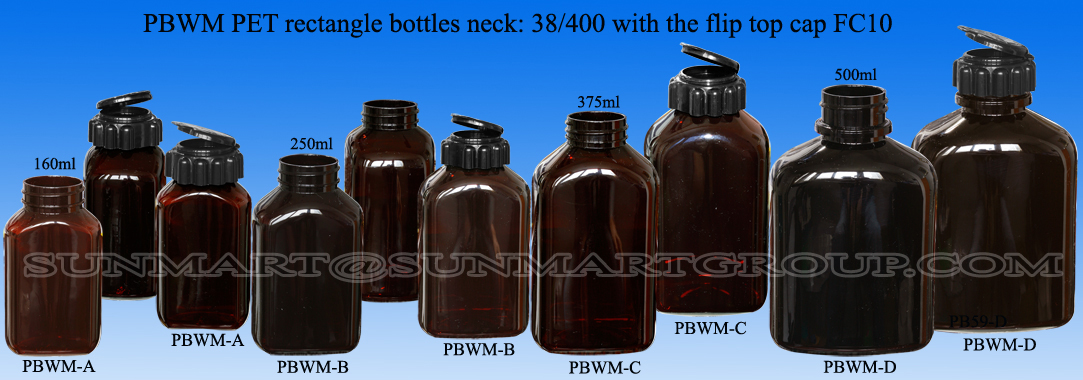

- the PET rectangle bottles with wide mouth 38/400 in PBWM series

- PBWM-A PET amber or black rectangle bottle 160ml wide mouth neck: 38/400 without flip top cap
   dimension: width 57mm X thickness 42mm X height 101mm
   - the flip top cap FC10 38/400 without liners

- PBWM-B PET amber or black rectangle bottle 250ml wide mouth neck: 38/400 without flip top cap
   dimension: width 66mm X thickness 51.5mm X height 111mm
   - the flip top cap FC10 38/400 without liners

- PBWM-C PET amber or black rectangle bottle 375ml wide mouth neck: 38/400 without flip top cap
   dimension: width 75mm X thickness 57.5mm X height 130mm
   - the flip top cap FC10 38/400 without liners

- PBWM-D PET amber or black rectangle bottle 500ml wide mouth neck: 38/400 without flip top cap
   dimension: width 91mm X thickness 61mm X height 145mm
   - the flip top cap FC10 38/400 without liners

If the liners you required,please inform us what liner you needed,the hot inductive liner or others that enables us

to offer you the lowest costs accordingly

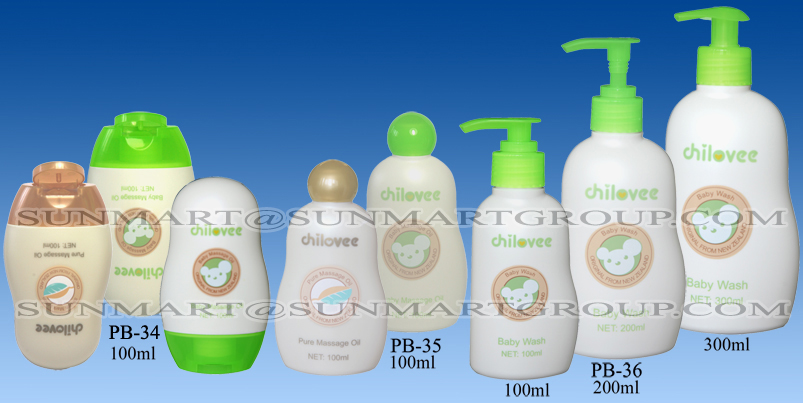

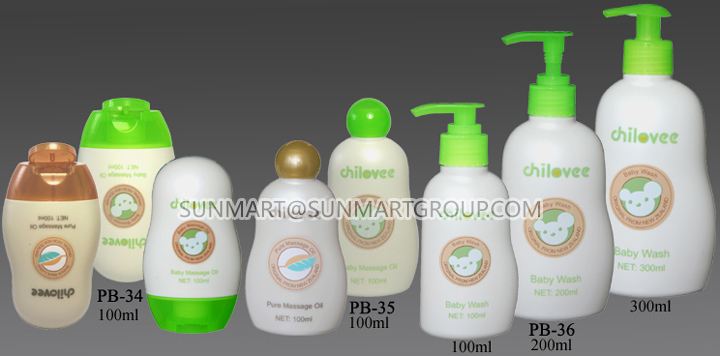

- PB-34 HDPE bottle 100ml with Flip top cap 24mm in snap-on
(the bottle's dimension: width 67mm X thickness 39mm X height 115mm)

- PB-35 HDPE bottle 100ml with PE Tip and PP Ball Cap

- PB-36 HDPE bottles with Lotion Pumps L-1(all plastic) dosage:2.0ml
  - 100ml 24/410 (the bottle's dimension: width 56.5mm X thickness 40mm X height 138mm)
  - 200ml 24/410 (the bottle's dimension: width 60.8mm X thickness 49mm X height 160mm)
  - 300ml 28/410 (the bottle's dimension: width 77mm X thickness 56mm X height 179mm)
