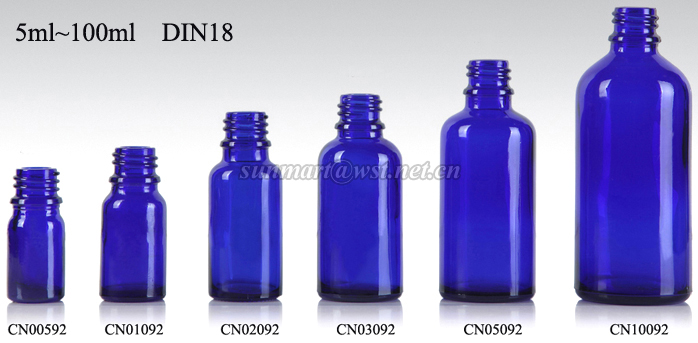

Blue/Green DIN18



Item No.	Capacity		Weight (g.)	Neck	Measurement(mm)
	Actual	Brimful			Dia.	Height
CN00592	5ml	6.7ml	22	DIN18	22	50.2
CN01092	10ml	12.5ml	27.5	DIN18	24.8	58
CN02092	20ml	22.5ml	35	DIN18	28.7	71.5
CN03092	30ml	35ml	48	DIN18	33	78.8
CN05092	50ml	57ml	55	DIN18	37.2	92.2
CN10092	100ml	105ml	88	DIN18	44.5	112

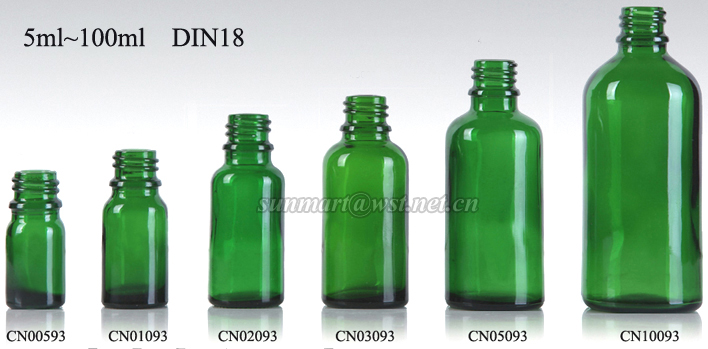

Item No.	Capacity		Weight (g.)	Neck	Measurement(mm)
	Actual	Brimful			Dia.	Height
CN00593	5ml	6.7ml	22	DIN18	22	50.2
CN01093	10ml	12.5ml	27.5	DIN18	24.8	58
CN02093	20ml	22.5ml	35	DIN18	28.7	71.5
CN03093	30ml	35ml	48	DIN18	33	78.8
CN05093	50ml	57ml	55	DIN18	37.2	92.2
CN10093	100ml	105ml	88	DIN18	44.5	112

At a glanceBlue and green glass bottles on the DIN18 neck, 5 ml to 100 ml, pressed to the same body dimensions as the matching amber bodies, so introducing a colour does not reopen the filling line, the capping setup or the carton. Six sizes carry the range, 5, 10, 20, 30, 50 and 100 ml, and the neck stays DIN18 across all of them, which means one dropper or 18/410 pump fits the whole set. Colour is the only variable in the specification. Ask for glass colour swatches with the sample and the shade can be agreed before the first production run.

Quality & complianceView ISO certifications, patents and FAQs for blue and green glass bottles.
