Products
| Aluminium cans >> Aluminium cans
Aluminium cans
Aluminium Bottles with Different Pumps and Caps:
- Different aluminium bottles can be made as per your requirements.
- The regular diameters: 15mm,19mm, 20mm, 22mm, 25mm, 28mm, 33mm, 35mm, and 40mm
- The capacities: 5ml ~ 150ml.
- The necks: in crimp-on version and screw-on version.
- Hectograph, Silk Screen printing, Electro-plating and UV coating for surfaces of bottles with inner epoxy coating can be proceeded.
- Our different spray pumps(fine mist spray pumps in crimp-on and screw-on version,tube-oral spray pumps) can be supplied.
- Plastic and aluminium caps can be made as per your requests.

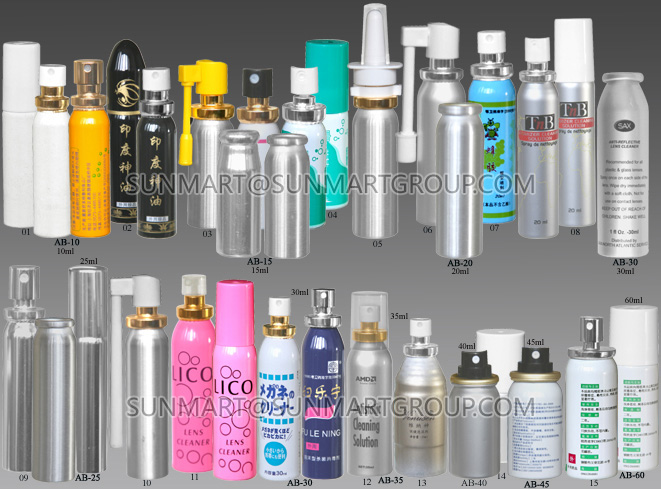

a. AB-10(01,02) Capacity:10ml Neck: in crimp-on dia.15mm
- neck in crimp version
b. AB-15(03,04) Capacity:15ml Neck: in crimp-on dia.15mm, 18mm, 20mm
- neck in crimp version
c. AB-20(05,06,07,08) Capacity:20ml Neck: in crimp-on dia.18mm, 20mm and screw-on 17/415,18/415
- neck in crimp version
- neck in screw version
d. AB-25(09,10,11) Capacity:25ml Neck: in crimp-on dia.18mm, 20mm and screw-on 17/415,18/415
- neck in crimp version
- neck in screw version
e. AB-30 Capacity:30ml Neck: in crimp-on dia.18mm, 20mm and screw-on 17/415,18/415
- neck in crimp version
- neck in screw version
f. AB-35(12,13) Capacity:35ml Neck: in crimp-on dia.20mm, 31mm and screw-on 18/415,20/410
- neck in crimp version
- neck in screw version
g. AB-40/45(14) Capacity:40ml/45ml Neck: in crimp-on dia.31mm
- neck in crimp version

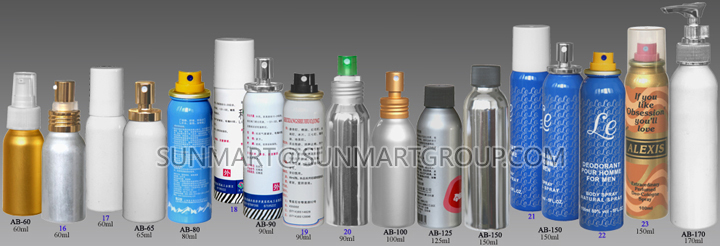

h. AB-60(15) Capacity:60ml Neck: in crimp-on dia.31mm, 32.3mm
- neck in crimp version
i. AB-60(16) Capacity:60ml Neck: screw-on 20/410, 24/410
- neck in screw version
j. AB-65(17) Capacity:65ml Neck: in crimp-on dia.24.5mm and screw-on 24/410
- neck in screw version
k. AB-80/90(18,19,20) Capacity:80ml/90ml Neck: in crimp-on dia.31mm,25.4mm and screw-on 24/410
- neck in crimp version
- neck in screw version
l. AB-100/125/150 Capacity:100ml/125ml/150ml Neck: in crimp-on dia.24.5mm,31mm and screw-on 24/410
- for 100ml - neck in crimp version
- neck in screw version
- for 125ml - neck in crimp version
- neck in screw version

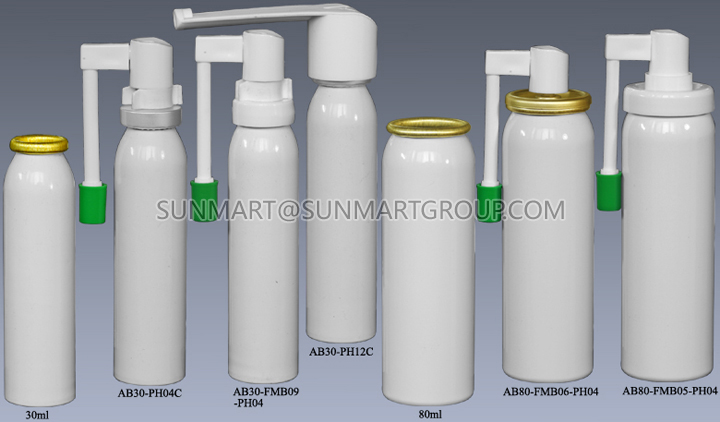

m. AB30-PH04C the aluminium can 30ml neck: 20mm in crimp-on version with tube sprayer PH-04C
white paint coating and internal surface be coated with inner epoxy coating
(the can's dimension: dia.25mm X 93mm)
PH-04C Tube sprayers (in crimp-on version) metal ferrule dia.20mm dosage:0.08ml,0.10ml,0.12ml with plastic locking clip
n. AB30-FMB09/PH04 the same cost for the aluminium can 30ml AB30
FMB09/PH04 Tube sprayers (in crimp-on version) plastic ferrule dia.20mm dosage:0.08ml,0.10ml,0.12ml with plastic locking clip
o. AB30-PH12C the same cost for the aluminium can 30ml AB30
PH12C Tube sprayers (in crimp-on version) metal ferrule dia.20mm dosage:0.08ml,0.10ml,0.12ml
p. AB80-FMB06-PH04 the aluminium can 80ml neck: 31mm in snap-on version with tube sprayer PH-04
white paint coating and internal surface be coated with inner epoxy coating
(the can's dimension: dia.35mm X 100mm)
FMB06/PH04 Tube sprayers ((in metal aerosol ferrule) 1" dosage: 0.10ml,0.12ml
q. AB80-FMB05-PH04 the same cost for the aluminium can 80ml AB80
FMB05/PH04 Tube sprayers (in snap-on version) plastic ferrule 1" dosage: 0.10ml,0.12ml

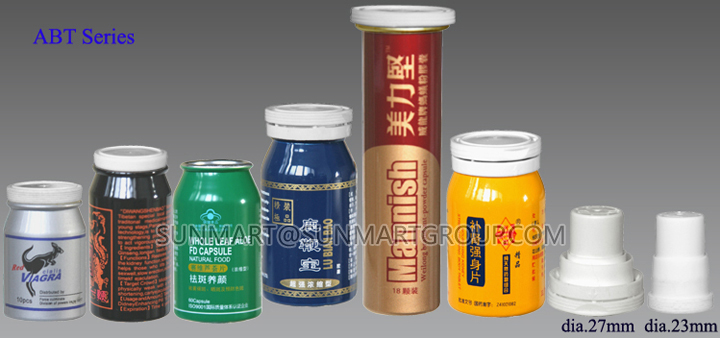

* Different aluminium cans for tablets packaging can be made as per your requests.
* The flexible spiral caps dia.23mm and 27mm are available.
- Cans' measurements from dia.28mm~30mm Height from 42mm~60mm
- Cans' measurements from dia.28mm~30mm Height from 65mm~98mm
- Cans' measurements from dia.40mm Height from 60mm~73mm
- The flexible spiral cap dia.23mm - The flexible spiral caps dia.27mm
- Different aluminium bottles can be made as per your requirements.
- The regular diameters: 15mm,19mm, 20mm, 22mm, 25mm, 28mm, 33mm, 35mm, and 40mm
- The capacities: 5ml ~ 150ml.
- The necks: in crimp-on version and screw-on version.
- Hectograph, Silk Screen printing, Electro-plating and UV coating for surfaces of bottles with inner epoxy coating can be proceeded.
- Our different spray pumps(fine mist spray pumps in crimp-on and screw-on version,tube-oral spray pumps) can be supplied.
- Plastic and aluminium caps can be made as per your requests.
a. AB-10(01,02) Capacity:10ml Neck: in crimp-on dia.15mm
- neck in crimp version
b. AB-15(03,04) Capacity:15ml Neck: in crimp-on dia.15mm, 18mm, 20mm
- neck in crimp version
c. AB-20(05,06,07,08) Capacity:20ml Neck: in crimp-on dia.18mm, 20mm and screw-on 17/415,18/415
- neck in crimp version
- neck in screw version
d. AB-25(09,10,11) Capacity:25ml Neck: in crimp-on dia.18mm, 20mm and screw-on 17/415,18/415
- neck in crimp version
- neck in screw version
e. AB-30 Capacity:30ml Neck: in crimp-on dia.18mm, 20mm and screw-on 17/415,18/415
- neck in crimp version
- neck in screw version
f. AB-35(12,13) Capacity:35ml Neck: in crimp-on dia.20mm, 31mm and screw-on 18/415,20/410
- neck in crimp version
- neck in screw version
g. AB-40/45(14) Capacity:40ml/45ml Neck: in crimp-on dia.31mm
- neck in crimp version
h. AB-60(15) Capacity:60ml Neck: in crimp-on dia.31mm, 32.3mm
- neck in crimp version
i. AB-60(16) Capacity:60ml Neck: screw-on 20/410, 24/410
- neck in screw version
j. AB-65(17) Capacity:65ml Neck: in crimp-on dia.24.5mm and screw-on 24/410
- neck in screw version
k. AB-80/90(18,19,20) Capacity:80ml/90ml Neck: in crimp-on dia.31mm,25.4mm and screw-on 24/410
- neck in crimp version
- neck in screw version
l. AB-100/125/150 Capacity:100ml/125ml/150ml Neck: in crimp-on dia.24.5mm,31mm and screw-on 24/410
- for 100ml - neck in crimp version
- neck in screw version
- for 125ml - neck in crimp version
- neck in screw version
m. AB30-PH04C the aluminium can 30ml neck: 20mm in crimp-on version with tube sprayer PH-04C
white paint coating and internal surface be coated with inner epoxy coating
(the can's dimension: dia.25mm X 93mm)
PH-04C Tube sprayers (in crimp-on version) metal ferrule dia.20mm dosage:0.08ml,0.10ml,0.12ml with plastic locking clip
n. AB30-FMB09/PH04 the same cost for the aluminium can 30ml AB30
FMB09/PH04 Tube sprayers (in crimp-on version) plastic ferrule dia.20mm dosage:0.08ml,0.10ml,0.12ml with plastic locking clip
o. AB30-PH12C the same cost for the aluminium can 30ml AB30
PH12C Tube sprayers (in crimp-on version) metal ferrule dia.20mm dosage:0.08ml,0.10ml,0.12ml
p. AB80-FMB06-PH04 the aluminium can 80ml neck: 31mm in snap-on version with tube sprayer PH-04
white paint coating and internal surface be coated with inner epoxy coating
(the can's dimension: dia.35mm X 100mm)
FMB06/PH04 Tube sprayers ((in metal aerosol ferrule) 1" dosage: 0.10ml,0.12ml
q. AB80-FMB05-PH04 the same cost for the aluminium can 80ml AB80
FMB05/PH04 Tube sprayers (in snap-on version) plastic ferrule 1" dosage: 0.10ml,0.12ml
* Different aluminium cans for tablets packaging can be made as per your requests.
* The flexible spiral caps dia.23mm and 27mm are available.
- Cans' measurements from dia.28mm~30mm Height from 42mm~60mm
- Cans' measurements from dia.28mm~30mm Height from 65mm~98mm
- Cans' measurements from dia.40mm Height from 60mm~73mm
- The flexible spiral cap dia.23mm - The flexible spiral caps dia.27mm
At a glanceAluminium bottles from 5 ml to 150 ml in body diameters of 15, 19, 20, 22, 25, 28, 33, 35 and 40 mm, in crimp-on or screw-on necks. An internal epoxy coating is available on the models that need it, and surface finishes run from hectograph and silk screen to electroplating and UV coating, so the print and the internal protection are specified separately rather than assumed. Each AB body is listed with the neck it takes, from 15 mm crimp through 17/415, 18/415 and 20/410 to 24/410 screw, and our crimp-on and screw-on fine mist pumps and PH tube sprayers are matched to the same necks. Send the artwork, the dose per stroke and whether the fill needs an internal coating, and the printed bottle is quoted with the pump fitted.
Quality & complianceView ISO certifications, patents and FAQs for aluminium aerosol cans.
