PET Preform & Bottles

- PET Preforms and PET Bottles
Different bottles can be produced as per your sample bottles or technical drawings.
All the bottles can be fitted with our spray pumps and caps.
- Round, Bullet, Boston, Oval, Square, and Fancy shaped bottles are available.

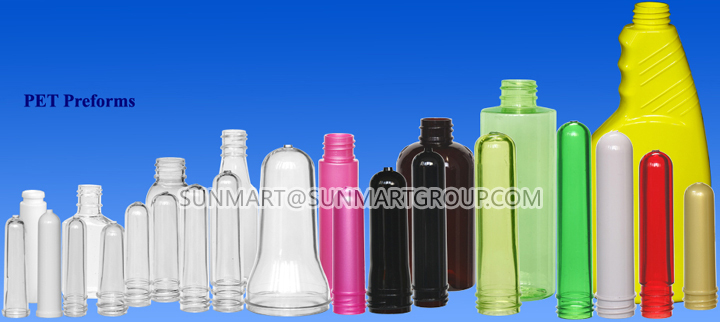

- PET Preforms
Plastic Bottles PET Preform & Bottles
- Different PET preforms with different weights are available,or can be made as per your requirements
- Necks: in screw-on, crimp-on, and snap-on version
- Different colors can be made

- PET bottles
Plastic Bottles PET Preform & Bottles

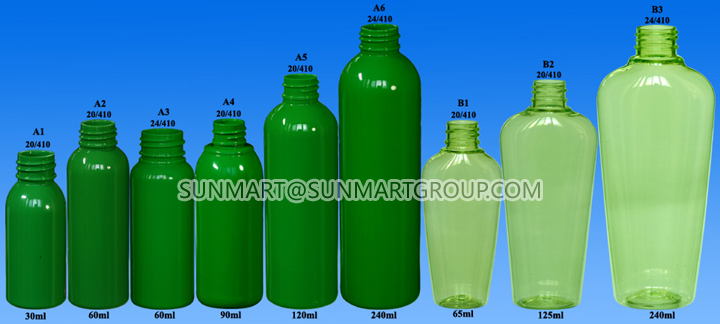

- A1 PET bullet 30ml 20/410 dia.30X height 72.4mm
- A2 PET bullet 60ml 20/410 dia.32Xheight 104mm
- A3 PET bullet 60ml 24/410 dia.33X height 99.3mm
- A4 PET bullet 90ml 20/410 dia.38X height 104mm
- A5 PET bullet 120ml 20/410 dia.39.4Xheight 136mm
- A6 PET bullet 240ml 24/410 dia.47.6Xheight 173mm

- B1 PET oval bottle 65ml 20/410 width 44.7Xthickness 31Xheight 102.5mm
- B2 PET oval bottle 125ml 20/410 width 54Xthickness 35Xheight 135mm
- B3 PET oval bottle 240ml 24/410 width 64.5Xthickness 43.5Xheight 169mm
Plastic Bottles PET Preform & Bottles

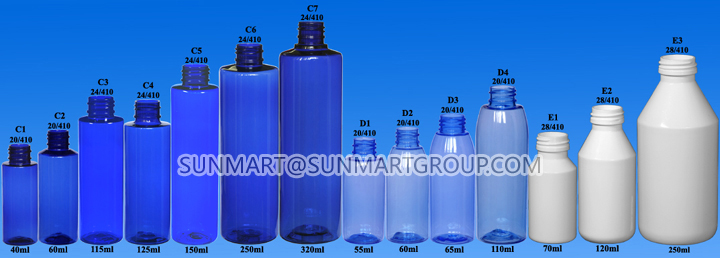

- C1 PET flat shoulder 40ml 20/410 dia.29.6mmXheight 82mm
- C2 PET flat shoulder 60ml 20/410 dia.34mmX height 91mm
- C3 PET flat shoulder 115ml 24/410 dia.38.3X height 123mm
- C4 PET flat shoulder 125ml 24/410 dia.41.5X height 119mm
- C5 PET flat shoulder 150ml 24/410 dia.40X height 151mm
- C6 PET flat shoulder 250ml 24/410 dia.49.5X height 159mm
- C7 PET flat shoulder 320ml 24/410 dia.54X height 172mm

- D1 PET round 55ml 20/410 dia.35X height 85.5mm
- D2 PET round 60ml 20/410 dia.35X height 93mm
- D3 PET round 65ml 20/410 dia.33.3X height 102mm
- D4 PET round 110ml 20/410 dia.37X height 129mm

- E1 PET draft shoulder 70ml 28/410 dia.40.3X height 82.6mm
- E2 PET draft shoulder 120ml 28/410 dia.47.5X height 104mm
- E3 PET draft shoulder 250ml 28/410 dia.58X height 139.3mm
Plastic Bottles PET Preform & Bottles

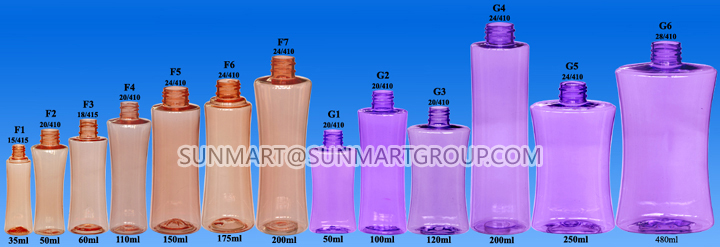

- F1 PET round drum bottle 35ml 15/415 dia.26.2~31Xheight 82.5mm
- F2 PET round drum bottle 50ml 20/410 dia.36.4~31.5Xheight 100mm
- F3 PET round drum bottle 60ml 18/415 dia.36~38.7Xheight 107mm
- F4 PET round drum bottle 110ml 20/410 dia.44.3~39.3Xheight 123mm
- F5 PET round drum bottle 150ml 24/410 dia.42.3~46Xheight 133mm
- F6 PET round drum bottle 175ml 24/410 dia.44.8~52.8Xheight 139mm
- F7 PET round drum bottle 200ml 24/410 dia.54~50Xheight 153mm

- G1 PET flat drum 50ml 20/410 width 45.7Xthickness 26Xheight 95mm
- G2 PET flat drum 100ml 20/410 width 44Xthickness 30.5Xheight 132mm
- G3 PET flat drum 120ml 20/410 width 57Xthickness 32.5Xheight 114mm
- G4 PET flat drum 200ml 24/410 width 49.5Xthickness 40.5Xheight 187.0mm
- G5 PET flat drum 250ml 24/410 width 71.5Xthickness 40.5Xheight 140.5mm
- G6 PET flat drum 480ml 28/410 width 89Xthickness 51Xheight 175mm
Plastic Bottles PET Preform & Bottles

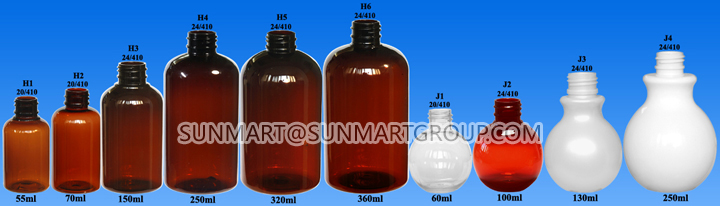

- H1 PET amber Boston 55ml 20/410 dia.37.5mmXheight 73mm
- H2 PET amber Boston 70ml 20/410 dia.39mmXheight 80mm
- H3 PET amber Boston 150ml 24/410 dia.49mmXheight 108mm
- H4 PET amber Boston 250ml 24/410 dia.58mmXheight 131mm
- H5 PET amber Boston 320ml 24/410 dia.63mmXheight 129mm
- H6 PET amber Boston 360ml 24/410 dia.66.5mmXheight 136mm

- J1 PET ball 60ml 20/410 dia.51Xheight 60mm
- J2 PET ball 100ml 24/410 dia.60mmXheight 69mm
- J3 PET ball 130ml 24/410 dia.60.5mmXheight 91mm
- J4 PET ball 250ml 24/410 round dia.76mmXheight 108mm
Plastic Bottles PET Preform & Bottles

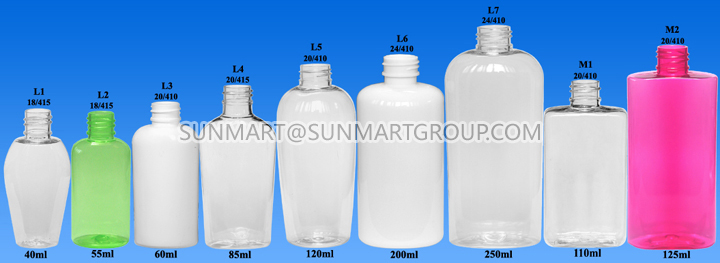

- L1 PET oval 40ml 18/415 width 41.5Xthickness 29Xheight 79.3mm
- L2 PET straight oval 55ml 18/415 width 37.3Xthickness 29Xheight 88mm
- L3 PET straight oval 60ml 20/410 width 43.5Xthickness 28.5Xheight 97.5mm
- L4 PET oval 85ml 20/415 width 51Xthickness 26Xheight 114mm
- L5 PET oval 120ml 20/410 width 46Xthickness 39Xheight 125mm
- L6 PET straight oval 200ml 24/410 width 55Xthickness 45.5Xheight 128m
- L7 PET oval 250ml 24/410 width 65Xthickness 41Xheight 158mm

- M1 PET flat 110ml 20/410 width 52.3Xthickness 27.7Xheight 103.5mm
- M2 PET flat 125ml 20/410 width 53.4mmXthickness 27.8mmXheight 124mm

Plastic Bottles PET Preform & Bottles

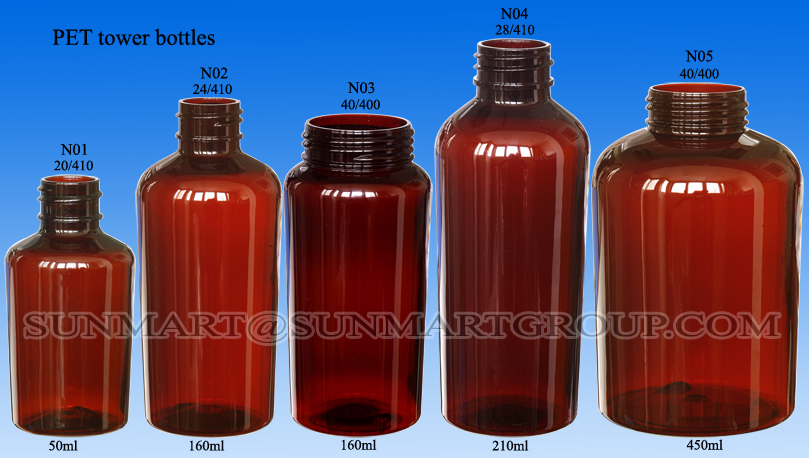

- N01 clear PET tower 50ml 20/410 dia.35.5~39mmXheight 75mm
- N02 clear PET tower 160ml 20/410 dia.46.4~51.2mmXheight 115mm
- N03 clear PET tower 160ml 40/400 dia.47.5~52.3mmXheight 109.7mm
- N04 clear PET tower 210ml 28/410 dia.48.7~53.6mmXheight 138mm
- N05 clear PET tower 450ml 40/400 dia.78.2~81.8mmXheight 121.5mm
Plastic Bottles PET Preform & Bottles

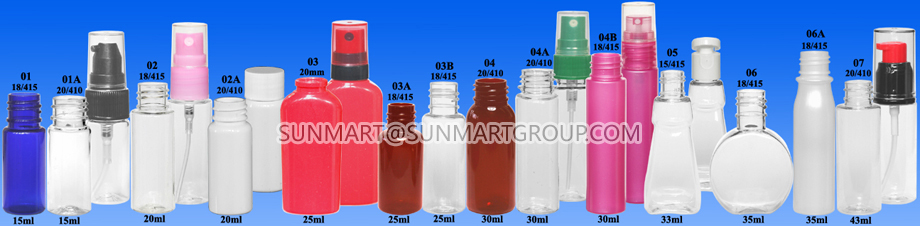

- 01 PET 15ml neck:18/415 dia.22.2Xheight 59.4mm
- 01A PET 15ml neck:20/410 dia.23.5Xheight 59.1mm
- 02 PET 20ml neck:18/415 dia.24Xheight 71.4mm
- 02A PET 20ml 20410 dia.25Xheight 65.5mm
- 03 PET 25ml neck:20mm width 34Xthickness 21.5Xheight 78mm
- 03A PET 25ml 18415 dia.27.5mmxH.65mm
- 03B PET 25ml neck:18415 dia.25mmXheight 71mm
- 04 PET 30ml neck:20/410 dia.28Xheight 79.7mm
- 04A PET 30ml neck:20/410 dia.24.7Xheight 90.5mm
- 04B PET 30ml 18415 dia.21.5mmxH.100mm
- 05 PET 33ml neck:15/415 width 32Xthickness 25.3Xheight 80mm
- 06 PET 35ml neck:18/415 width 47Xthickness 22.3Xheight 63.5mm
- 06A PET wine 35ml neck:18/415 dia.24Xheight 104mm
- 07 PET 43ml neck:20/410 dia.30Xheight 82.5mm
Plastic Bottles PET Preform & Bottles

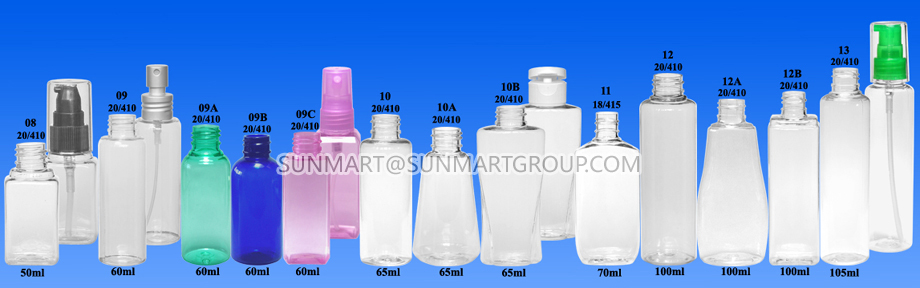

- 08 PET square 50ml neck:20/410 width 32.5Xheight 68.3mm
- 09 PET 60ml neck:20/410 dia.32Xheight 105mm
- 09A PET 60ml neck:20/410 dia.34Xheight 90mm
- 09B PET 60ml neck:20/410 dia.36Xheight 81mm
- 09C PET square 60ml neck:20/410 width 31.3Xheight 89.2mm

- 10 PET 65ml neck:20/410 dia.34Xheight 96.7mm
- 10A PET 65ml neck:20/410 dia.42.5Xheight 86.5mm
- 10B PET 65ml neck:20/410 width 43Xthickness 27Xheight 107mm
- 11 PET 70ml neck:18/415 width 47Xthickness 25Xheight 104.5mm
- 12 PET 100ml neck:20/410 dia.35.2Xheight 138mm
- 12A PET 100ml neck:20/410 width 50Xthickness 34Xheight 112mm
- 12B PET 100ml neck:20/410 width 39.5Xthickness 28.5Xheight 117mm
- 13 PET 105ml neck:20/415 dia.35.4Xheight 138mm
Plastic Bottles PET Preform & Bottles

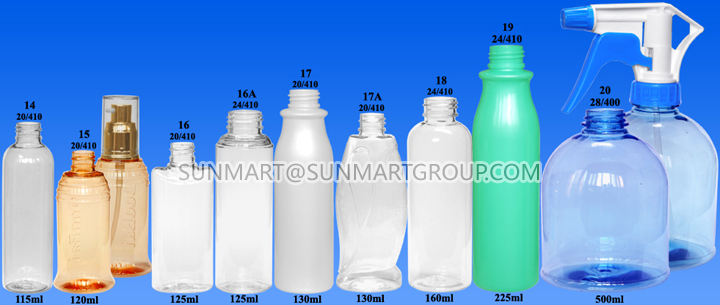

- 14 PET 115ml neck:20/410 dia.38Xheight 132mm
- 15 PET 120ml neck:20/410 dia.51Xheight 105mm
- 16 PET 125ml neck:20/410 width 47Xthickness 38Xheight 115mm
- 16A PET 125ml neck:24/410 dia.38Xheight 135mm
- 17 PET 130ml neck:20/410 dia.37.5Xheight 150.5mm
- 17A PET 130ml neck:20/410 width 53.5Xthickness 42Xheight 128.7mm
- 18 PET 160ml neck:24/410 dia.43.5Xheight 138mm
- 19 PET 225ml neck:24/410 dia.45.5Xheight 183mm
- 20 PET 500ml neck:28/400 dia.86.5Xheight 123mm

At a glancePET bottles and PET preforms from 15 ml to 500 ml in bullet, Boston, oval, square, round and fancy shapes, on 15/415, 18/415, 20/410, 20/415, 24/410, 28/400 and 28/410 necks depending on the model. Preform design and weight are chosen for the target bottle geometry and then proved on a sample, because wall thickness, top load and drop performance follow the blow as much as the preform. Every item is listed with diameter and height, and each bottle is matched to a mist pump, lotion pump or cap we already make, so neck and closure are known to fit before the first sample. Send the drawing and the preform weight you want to start from and we will quote bottle, pump and cap together.
